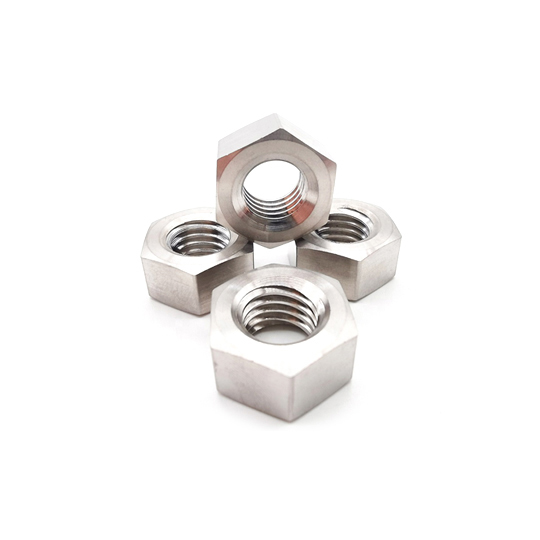

Titanium Hexagon Nuts DIN 934
PageView:865 Category:All Products Industrial Industrial Titanium Fasteners Titanium Hexagon Nuts
Titanium Fasteners - Bolts, Nuts & Screws
Available in metric and imperial sizes.
Excellent strength to weight ratio.
Practically inert to chloride, chlorines and seawater.
Titanium Hexagon Nuts are designed for use in fastening applications, and feature a hexagonal head for use with a standard spanner. Titanium fasteners are unique for their strength, light weight and corrosion resistance. They are critical to many industries, including chlor-alkali, marine, oil & gas, desalination, medical, and pulp and paper.
Grade 2 and Grade 5 are the most commonly used grades of titanium nuts:
• Grade 2 (UNS R50400 / 3.7035): Commercially pure titanium and the most common grade for screws.
• Grade 5 (UNS R56400 / 3.7165): Superior strength-to-weight ratio for a unique combination of corrosion and high strength.
We also can provide fasteners in Titanium grade 7, grade 10 and grade 23.
Hex Nut Sizes
• M2 – M100
• 1/4″ – 4″
Hex Nut Specifications
• DIN 439 / ISO 4035
• DIN 934 / ISO 4032
• ASME B18.2.2
• ASME B18.16.3
Made according to the major standards, unless specified by the buyer.
DIN 934, Titanium Hexagon Nuts Dimensions
| Thread Size (d) | M2 | (M2.3) | M2.5 | (M2.6) | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | |
| m | max.=nom. | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 11 |
| min. | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 10.3 | |
| s | max.=nom. | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 |
| min. | 3.82 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | |
| e | min. | 4.32 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 |
| Thread Size (d) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | |
| m | max.=nom. | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 26 | 29 | 31 | 34 | 36 | 38 | 42 |
| min | 12.3 | 14.3 | 14.9 | 16.9 | 17.7 | 20.7 | 22.7 | 24.7 | 27.4 | 29.4 | 32.4 | 34.4 | 36.4 | 40.4 | |
| s | max.=nom. | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| min. | 23.67 | 26.16 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| e | min. | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 |
| Thread Size (d) | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | M110 | M125 | M140 | M160 | |
| m | max.=nom. | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 | 88 | 100 | 112 | 128 |
| min. | 43.4 | 46.4 | 49.1 | 52.1 | 56.1 | 59.1 | 62.1 | 66.1 | 70.1 | 78.1 | 85.8 | 97.8 | 109.8 | 125.5 | |
| s | max.=nom. | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 | 155 | 180 | 200 | 230 |
| min. | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 117.8 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225.4 | |
| e | min. | 93.56 | 99.21 | 104.9 | 110.5 | 116.2 | 121.8 | 127.5 | 133.1 | 144.1 | 161 | 172.3 | 200.6 | 220.8 | 254.7 |
| * | – | – | – | – | – | – | – | – | – | – | 170 | 196 | 216 | 248 | |
